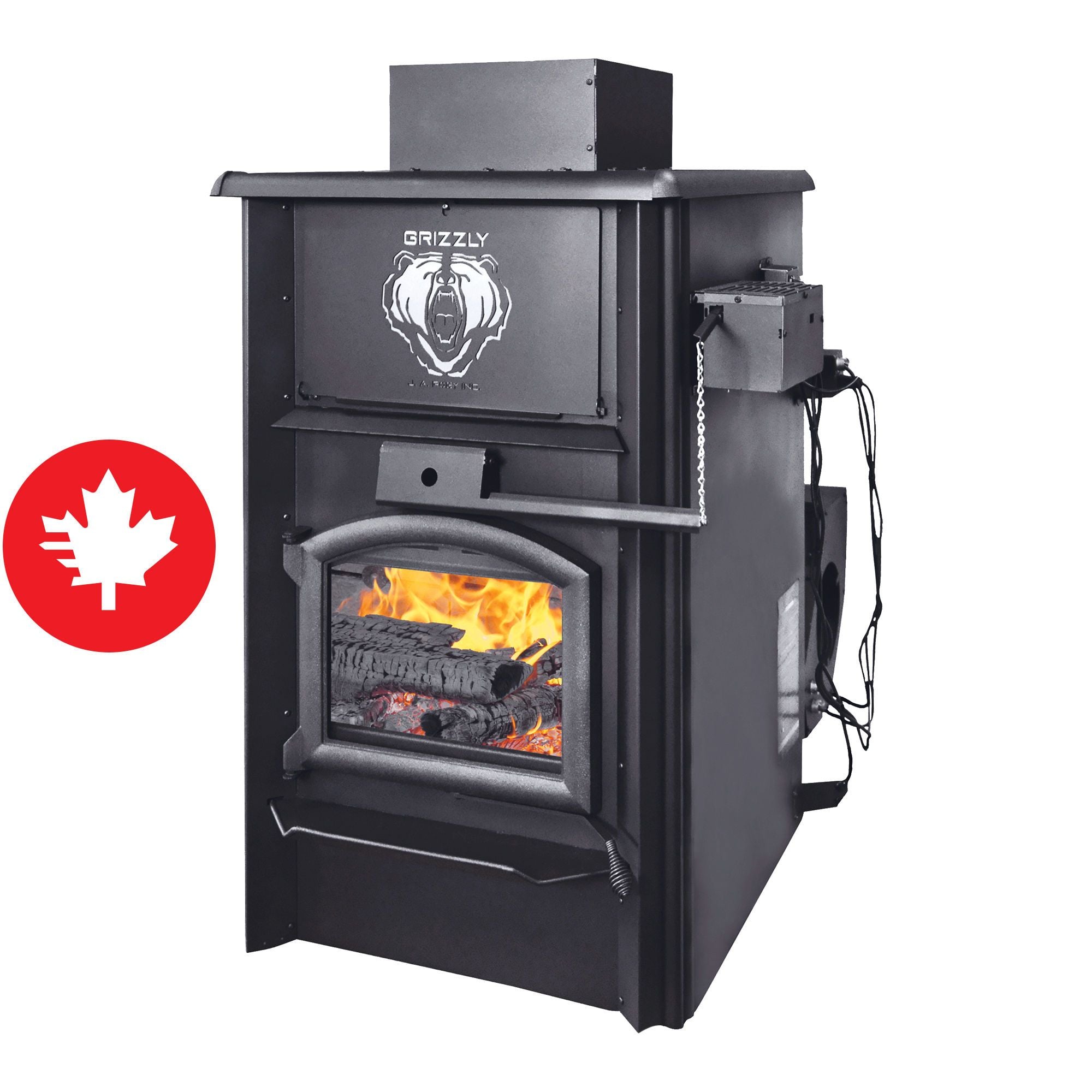

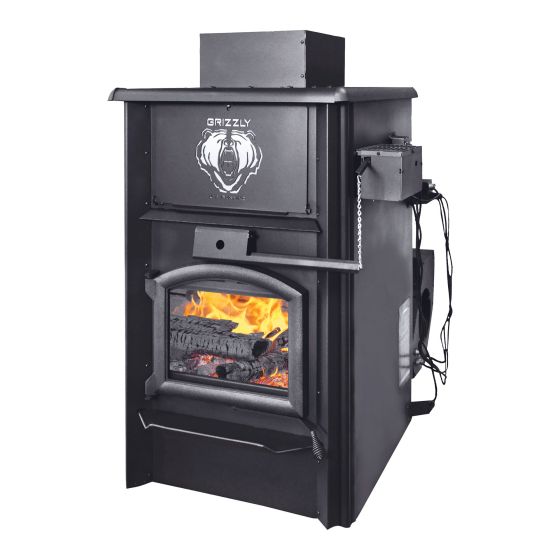

Grizzly Tor wood furnace

Grizzly Tor wood furnace. • Chimney diameter: 6 in • Logs up to 25 in length • One cast iron door with glass • Glass air-wash system • Baffle: ceramic fiber • 2 blowers 2 speed • Firebox lined with refractory bricks for better heat distribution • Works with a wall thermostat and is equipped with a unique heat exchanger system that increases the volume of hot air and the energy efficiency of the unit • Top adapted to receive 2 ventilation ducts of 6 in (see BMR codes 007-10044 or 046-9230) • Exteriors dimensions: W 29 1/8 in (without electrical box), 33 5/8 po (with electrical box); H 46 in without plenum, 52 3/8 in with plenum; D 46 3/4 in without fan box, 48 7/8 in with fan box • Firebox dimensions: W 20 1/2 x H 15 x D 25 1/2 in.
