25 l (6.5 US gal) Captive air pressure tank
BMR Code
067-9305
Part number
600650B
UPC
772910006501
This horizontal diaphragm tank provides water storage and water pressure for jet and deep well pumps.
Centre de Rénovation G. Doyon (Bromont) Free In-Store Pickup available 7 to 10 days
*The price and inventory of products offered on the website may vary. The price may differ from an advertised price due to varying conditions in different markets, errors or situations beyond our control.

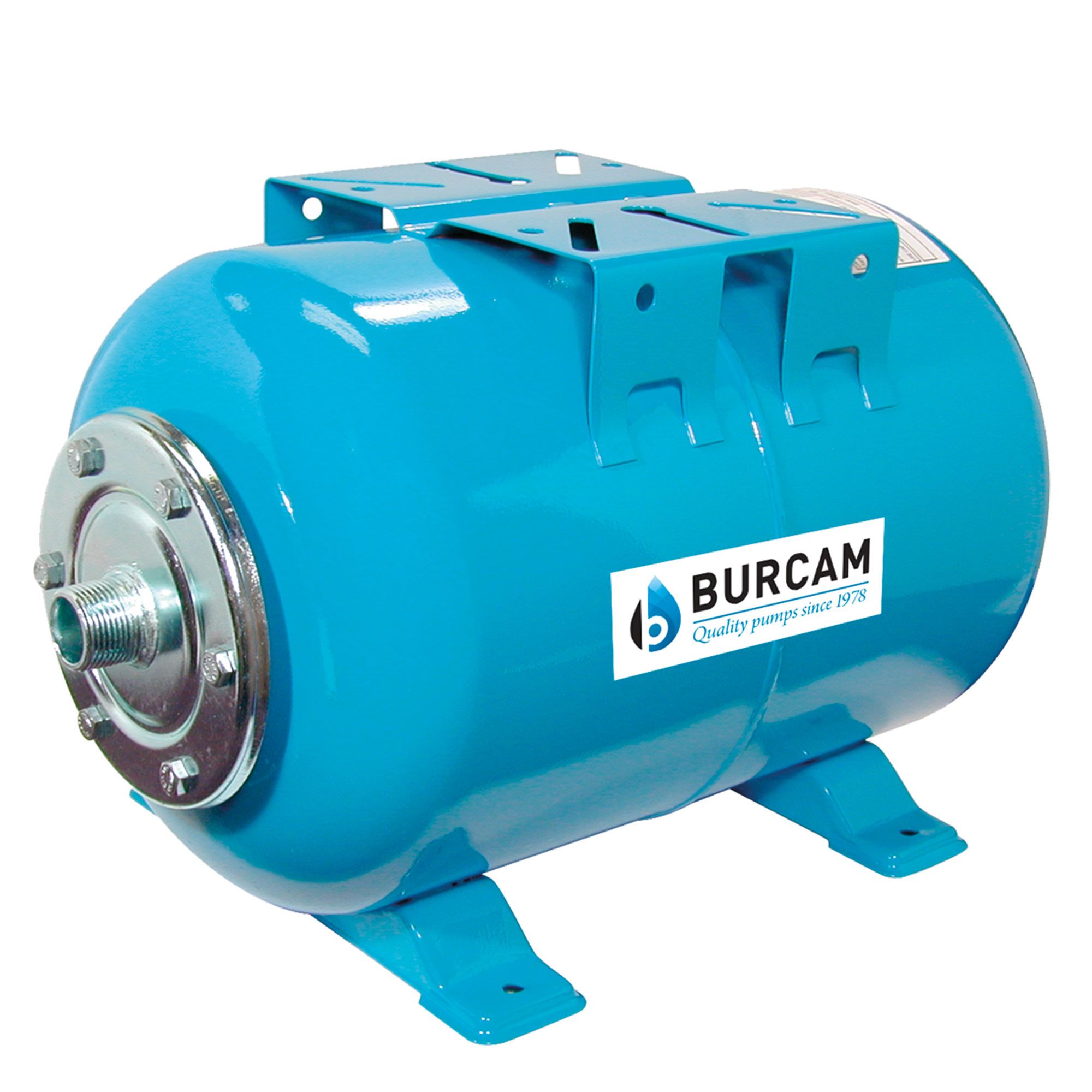

25 l (6.5 US gal) Captive air pressure tank.
• Designed for water systems assembled with a jet pump or a deep well submersible pump
• Replaceable bladder made of synthetic butyl rubber to increase reliability and life span
• No water to metal contact for rust-free operation
• Stainless steel flange with 1 in NPT connection
• 100 psi maximum working pressure
• For use with a 20/40 psi pressure switch, the air pressure must be adjusted to 18 psi; for a 30/50 psi switch, the pressure must be adjusted to 28 psi
• Drawdown 2.4 US gal (20/40 psi); 1.9 US gal (30/50 psi).
| Brand | BURCAM |
|---|---|
| Volume | 23 l |
